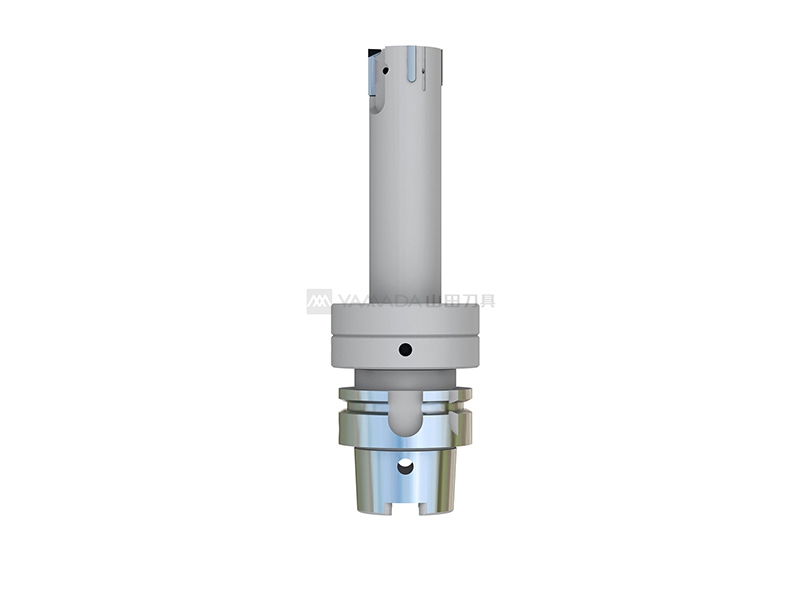

precise reverse boring tool

precise reverse boring tool Reverse finish processing rotary valve hole. The use of micro precision adjustable boring head make the
reverse boring cutter precision adjustment.The design of the eccentric cutter arbor in the rotary table can
not spin to state from the front under the cutting tool back pull finishing rotary valve bearing hole, not only
can ensure good dimensional accuracy and higher guarantees two bearing gear concentricity. The cutting
tool bar material by vacuum heat treatment with higher strength and hardness,assure stability and life of cutting tools More

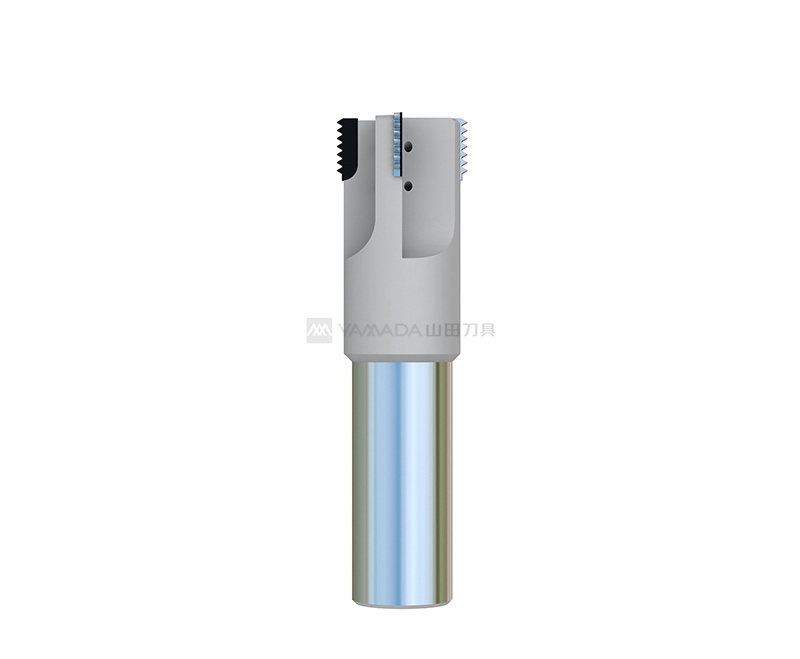

PCD thread milling tool

PCD thread milling tool The press block thread milling. The four cutting edges' design
greatly improves the feed per rotate, improve the remove capacity
of metal material. The use of PCD blade not only can improve the
life of cutting tools but also can get good surface roughness and
thread precision. Design of cutter center outlet water can reduce the chip removal
of cutting area by heat raise during the process, Real high performance
and efficient cutting tool! More

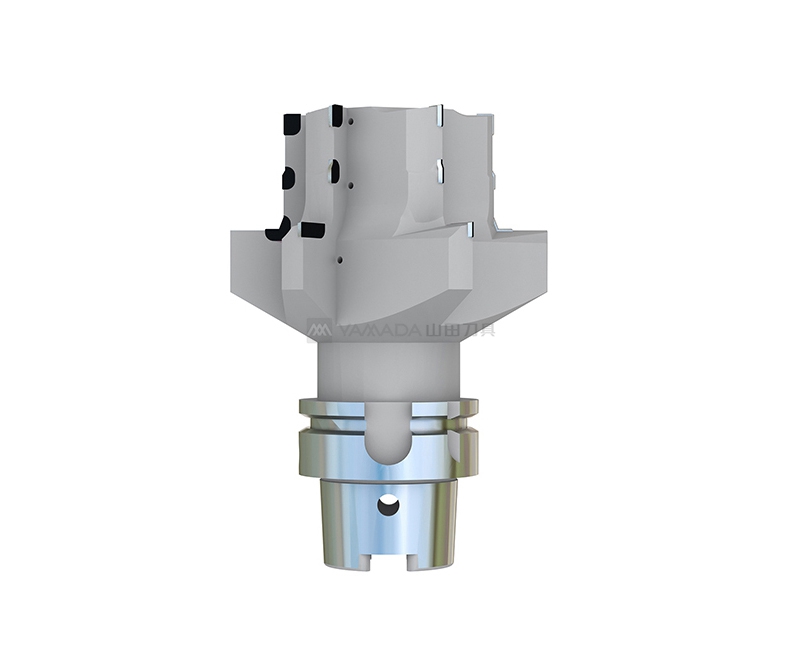

PCD indexable boring tool

PCD indexable boring tool Rough and finish machining the rotary valve eccentric hole.It's a big chanllenge to ensure strict size tolerance and
cylindricity under big diameter,wearout hole and thin wall and other poor factors.The cutter makes use of mold processing
design philosophy,edge specially processed and in strict dynamical balancing rank,to meet the requirment of processing
precision,and keep high cutting efficiency ,superlong cutting life,higher craft safety ensures the cutter to have a high
cost performance! More

PCD indexable boring tool

PCD indexable boring tool Roughing machining pressure block hole, plane, chamfer to meet
roughing processing tool quick and safety of remove large blank margin requirements.
Non standard boring cutter with indexable inserts based on multi segment hole,plane,
inverted angle processing at the same time. The processing choose different
material of indexable cutter sheet according to different workpiece material and
,has more extensive adaptability, meet rouging and finishing process. Dynamic
balance grade G2.5 of tool factory meet the high-speed cutting shapeto reduce the
machine tool spindle grinding underv low stability .The perfect process has very
high price advantage! More

PCD precise boring tool

PCD precise boring tool Finishing machining rotary valve hole. High precision micro adjusting
mechanism design can adjust the cutter size fast, simple of the
steady state, the high rigid locking plate provid the pressing strong
force,safety! Through the guide strip and flange adapter interface
The design successfully solve of the coaxial degree and circle
workpiece column degrees. Dynamic balance G2.5 tool factory
reduce the machine tool spindle wear, make the cutter with high
tolerance requirements and ensure the processing hole to be
high Production efficiency! More

PCD precise boring tool

PCD precise boring tool Finishing presssure hole. High precision micrsoft mechanism design
can adjust the cutter size fast, simple the steady state,
the high rigid locking plate provid the strong pressing, improve process safety!
The guide bar adopt PCD material, wear resistance
small coefficient of friction, greatly improve the process size precision,
smoothness and cutter bar life. The workpiece quality and stability improve
the competitiveness. More
