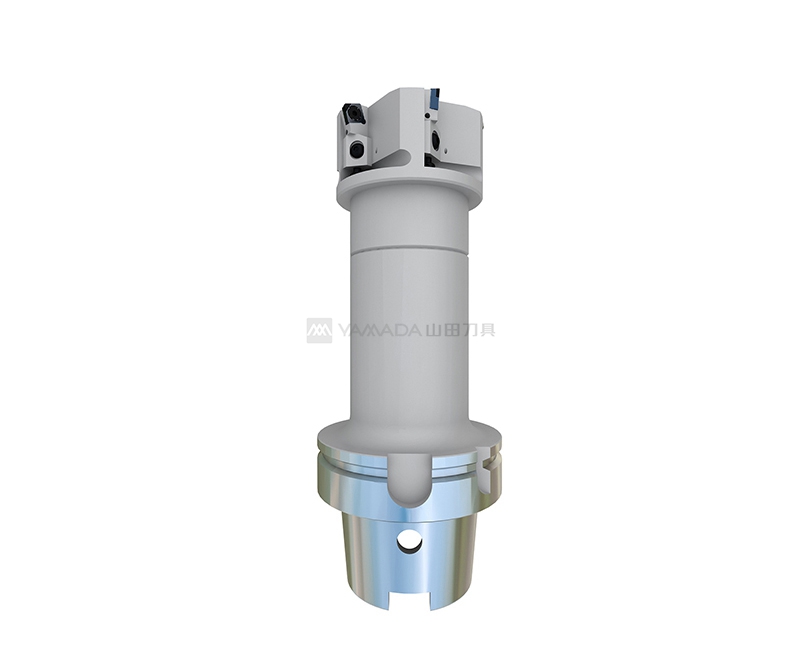

indexable boring tool

indexable boring tool Rough machining cylinder hole, the insert use one-piece HSK
high-speed handle and trimming cutting tool clamp design,
fine-tuning agencies make the tip diameter jumped reach to minimum,
minimize reduce the cutting force from the rough machining processing.
The blade use the BT31CBN material which developed for cast iron,
wear resistance and high temperature resistance make the cutting tool
have higher service life, with the most cost performance efficient complete
the cylinder hole’s rough machining. More

honing head

honing head Finishing and Roughing quilted cylinder hole, advanced production equipment and
modern production technology ensure the honing head round accuracy, high precision
of honing head cooperate with machine tool’s on-line monitoring function assure
tolerance requirements of the machine cylinder hole roundness and cylindricity,
stability product improve the using performance of the workpiece. More

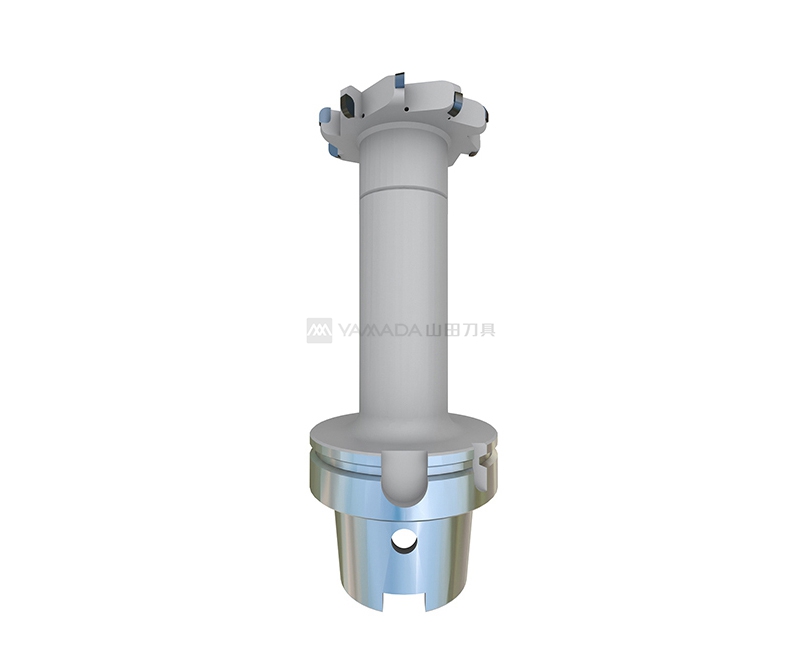

PCD face and side end milling tool

PCD face and side end milling tool Milling bearing face, tooth insert design greater raised the feeding of every turn,
reduced the cutting resistance force and vibration, the cutting tool factory default
dynamic balance level is G2.5, fully improve the stability and accuracy during
the cutting tool in high efficiency processing. Cutting tools’head part
use the alternative form, not only can more rapidly replace the failure cutting tool
but also can greatly improved the handle’s utilization, further improve the production
efficiency and reduce the product cost! More

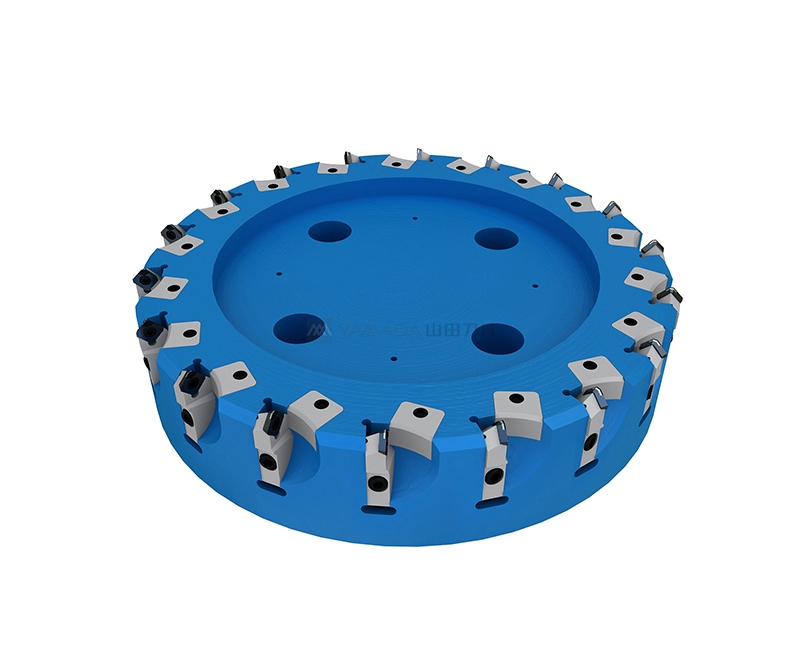

PCD face milling tool

PCD face milling tool Process principal plane of cylinder body, using cutting insert and fixing light insert combined mode,
cutting tool design have negative chamfer to meet the big impact from the double material processing,
it can prevent the blade collapse edge, maximum full play the use of the tool life. Repair light insert
have a variety of blade to choose, in order to meet customers’ special requirement of the surface RZ,
PT values. Ultra short delivery time, simple operation method, higher efficiency, it really reduces customers'
unit cost! More
