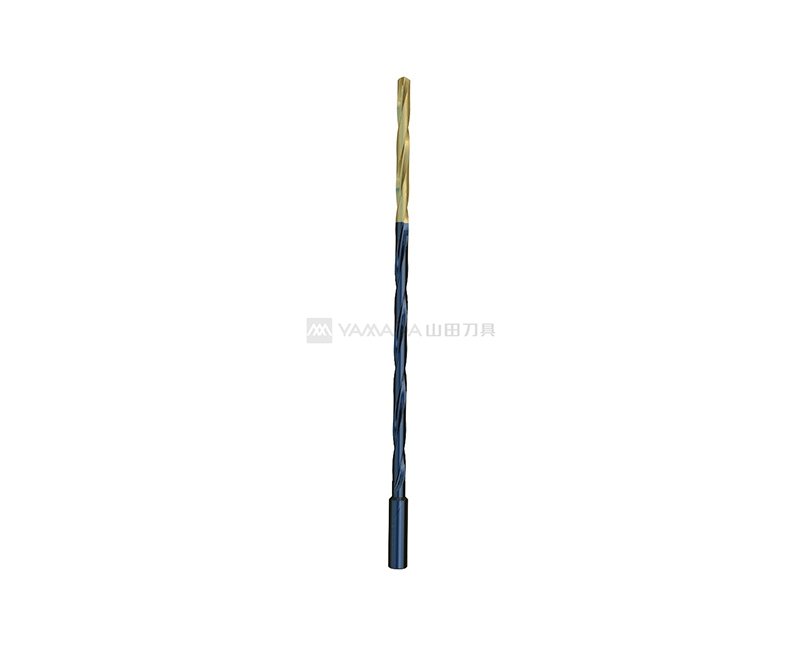

Carbide alloy deep hole drilling

Carbide alloy deep hole drilling The main oil passage hole with deep hole processing, choose high hardness and high toughness
ultrafine grain materials, excellent groove type, blade type and angle of the geometric design,
Using advanced numerical control equipment and scientific manufacturing process, with polishing
processing, deep hole drilling process, they both can cutting fast and chip removal smooth,
they also can spread Heat fast, realized the high efficiency, high precision and long life More

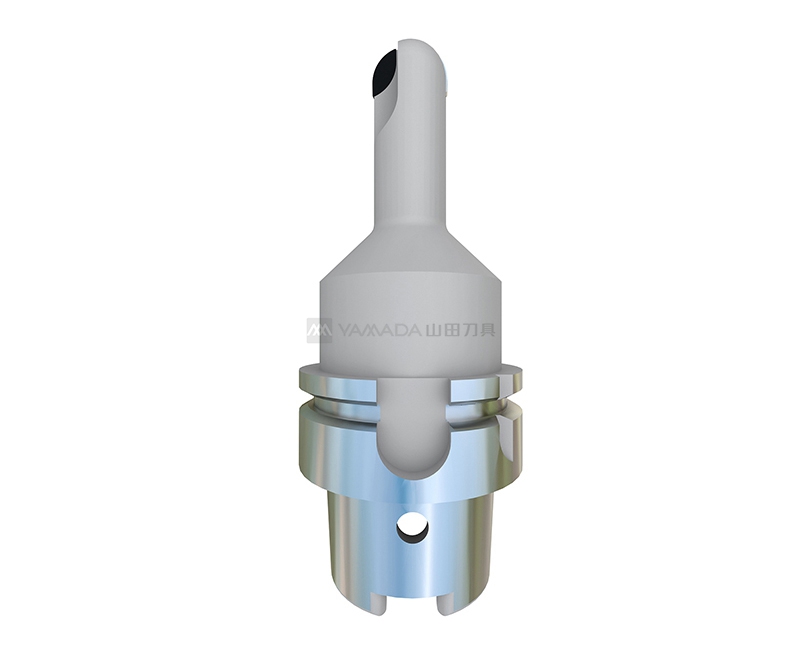

PCD ball head milling tool

PCD ball head milling tool Rough milling camshaft hemicycle, superhard PCD material shows excellent cutting performance
when rough machining allowance irregular surface, an organic whole tool design with the center
of the water which greatly Improve the metal removal rate, and long tool life reduce the consumption
of the cutting tool. Stability cutting tool size don’t need to adjust after tool failure, and the whole
machine parameters can continue processing. High process safety and productivity. More

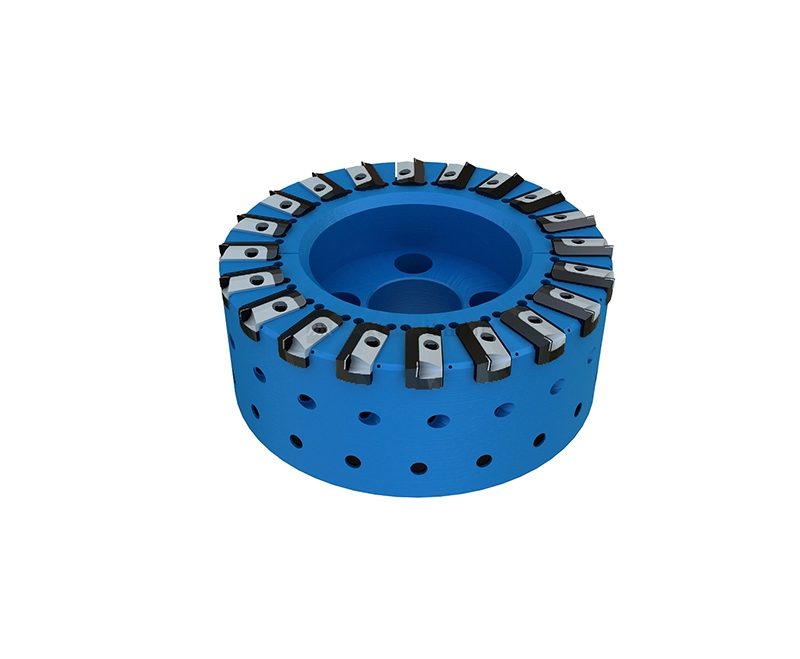

PCD face milling tool

PCD face milling tool Suitable for processing of aluminum alloy material artifacts, diameter
Ranging from 60 mm to 200 mm, and can choose
the tooth type. The cutter head with a cold hole inside, the blade have
a variety of insert types, so as to adapt to different surface roughness
Roughness requirement. Dynamic balance grade G2.5, special
blade clamp design to strengthen the safety of the cutting tool in high
speed, easy and convenient to adjust the cutting tool.
High precision! High efficiency! High service life! More

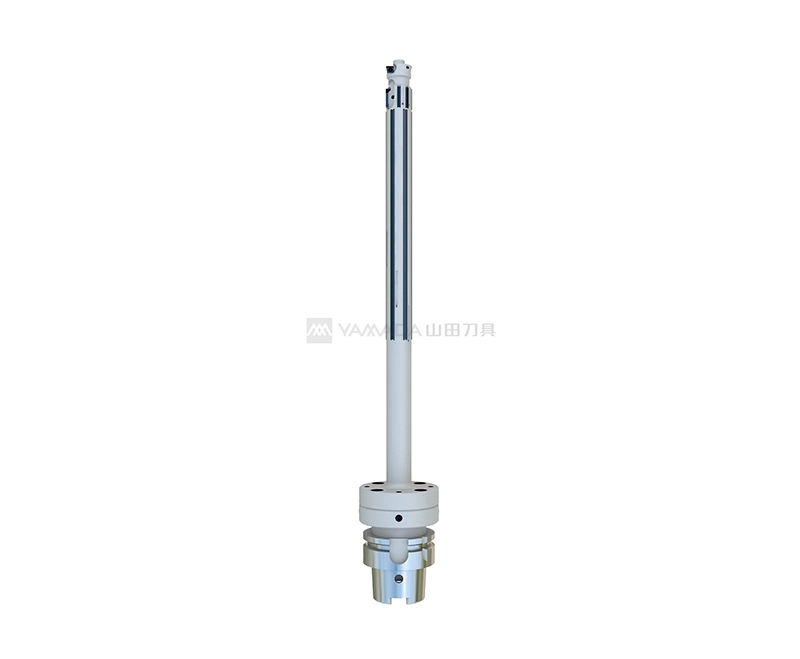

PCD reamer

PCD reamer Rough finish machining cam shaft hole, the PCD materials in this solution not only as a cutting edge,
but also as a guide bar’s material, making full use of PCD characteristics of small friction coefficient,
and special drainage holes design, it not only can ensure CAM shaft hole tolerance, roundness, coaxiality in
deep hole processing, but also can obtain a good surface roughness. More

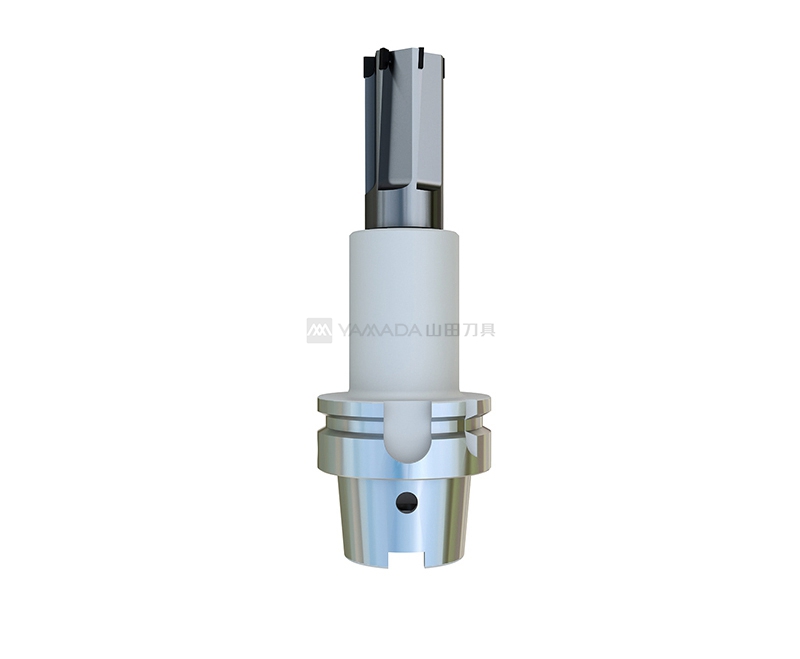

PCD reamer

PCD reamer Finishing tappet hole and tappet hole wall thickness are uneven,
it easy to cause hole cylindricity out-of-tolerance and size unstable,
the scheme adopts the six insert not equidistant points Ream machining,
cutting force, the jump size Jump are controlled within 0.003,
it make the cutter with extremely efficiency to achieve the products precision requirement,
and can according to customer's different machine tools select heat shrinkable type, one-piece,
flange adapter and different handle interface type, etc.
When cutting tool leave the factory, the dynamic balance grade preset to G2.5
and with internal cooling hole can achieve the cutting tools’ longest service life More

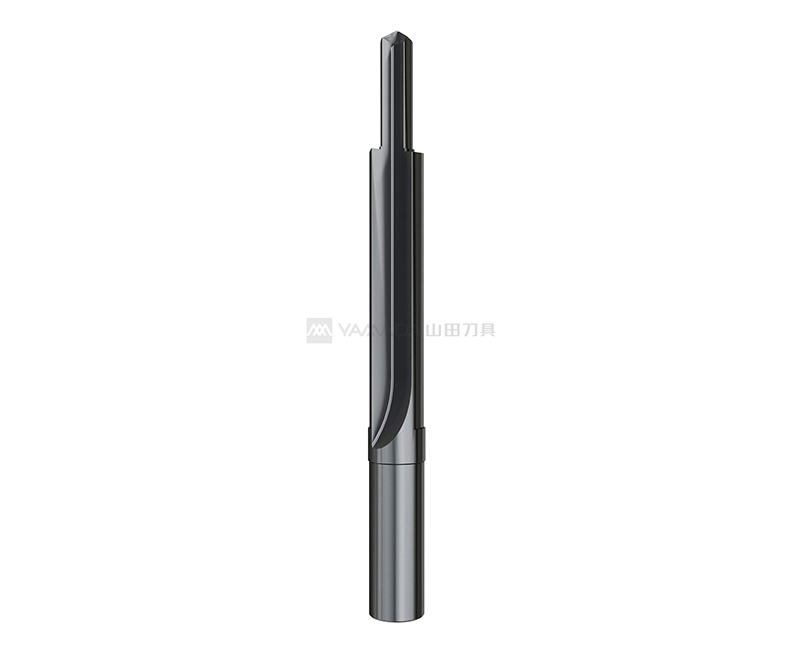

PCD reamer

PCD reamer The spark plug hole processing scheme .The optimized processing plan makes full use of modern design concept,
it will be highly centralize on processing size in each tool, reduce the magnitude of the configuration tool.
PCD cutting and cemented carbide substrate is the golden group.Maximum satisfy the high-speed and efficient
processing Concept, with a more stable product quality greatly improve the production efficiency, reduce the
production cost! More
